Upload MCU Information Query

The upload mcu information query can be used by the client to upload the mcu PWM information. This information is required in order to operate a "DumbMCU". The query uses the format:

!s-uINF-[SERVO_COUNT]-[PWM_MIN(0):PWM_MAX(0)]-<...>-[PWM_MIN(SERVO_COUNT-1):PWM_MAX(SERVO_COUNT-1)]-e!

• [SERVO_COUNT] → A single uint8_t indicating how many servos the mcu has. Since this number cannot be zero, it does not need any offset applied.
• [PWM_MIN:PWM_MAX] → The information pair PWM_MIN, the minimum PWM signal position; and PWM_MAX, the maximum PWM signal for the given servo; which represent the calibration information for a given servo. These two PWM values are separated by the ASCII character : (uint8_t c=58), and for multiple movements, each information pair PWM_MIN(i):PWM_MAX(i) is separated by a dash - (uint8_t c=45) from the information pair of the following servo calibration. Both of the PWM_SIGNAL (uint16_t values) must have the positive +1 offset applied, as they can take value zero.

The possible responses for this query by the server are either a generic ACK control query, or a negative control query with one of the following control codes:

• _NACK_InvalidQuery (uint8_t c=255) → If the query format is invalid: contains null-bytes, invalid header or tail sequences, or the query function code is not recognized.
• _NACK_NoActiveMCU (uint8_t c=254) → If client has not selected a mcu before issuing the command.
• _NACK_InvalidParameter (uint8_t c=252) → If the query parameters are out of range: a servo id exceeds the selected mcu servo count, or a PWM signal value out of the range [0→32766].
• _NACK_ServoCountMissmatch (uint8_t c=251) → If the user tries to update information for a different number of servos than the selected mcu has.
• _NACK_ErrorLoadingMINMAX (uint8_t c=247) → If the PWM information could not be loaded into the server database.

PWM Signal codification

Since the PWM signal can take various bit resolution levels, usually ranging from 8-bit to 16-bit, with >16bit being niche or application-specific territory, the procotol allocates 2 bytes (up to 15-bit pwm resolution) for PWM signals on SRVP queries.

This means that in order to follow the protocol no-zero convention, each individual byte needs to incorporate this offset. This is required because, for values of PWM_SIGNAL<255, the upper-byte will always be zero, and for the specific value PWM_SIGNAL=256, the lower-byte will be zero.

How is offset applied

The offset is introduced by fixing the most significant bit of the uint16_t PWM_SIGNAL to 1, and then adding 1 to the normal PWM signal value. This results in a 15-bit signal with one fewer representable PWM value, a range of [0 → 32766]. On PWM servos that use the full 15-bit resolution over a 180º linear range, this results in a precision loss of approximately 5.493 millidegrees reduction in total range, and 0.1676 microdegrees decrease in angular resolution per step, which is effectively negligible for most use-cases.

To introduce this offset, the formula PWM_SIGNAL = pwm + (1+(0b1<<15)) is used; and the formula pwm = PWM_SIGNAL - (1+(0b1<<15)) is used on the receiving end to undo the offset applied.

Endianness

To avoid the endianness problem, the protocol introduces a normalized implementation through which uint16_t values are split into two uint8_t values in a set order (the first byte will be the upper-byte, followed by the lower-byte). The visual representation of this transformation would be:

And the functions used for this are:

std::string QueryGenerator::divideIntoBytes(uint16_t u){
    std::string hl = "";
    hl+=(uint8_t)(u>>8);
    hl+=(uint8_t)(u&0x00ff);
    return hl;
}

inline uint16_t QueryGenerator::restore16int(uint8_t c0,uint8_t c1){return (c0<<8)+c1;}

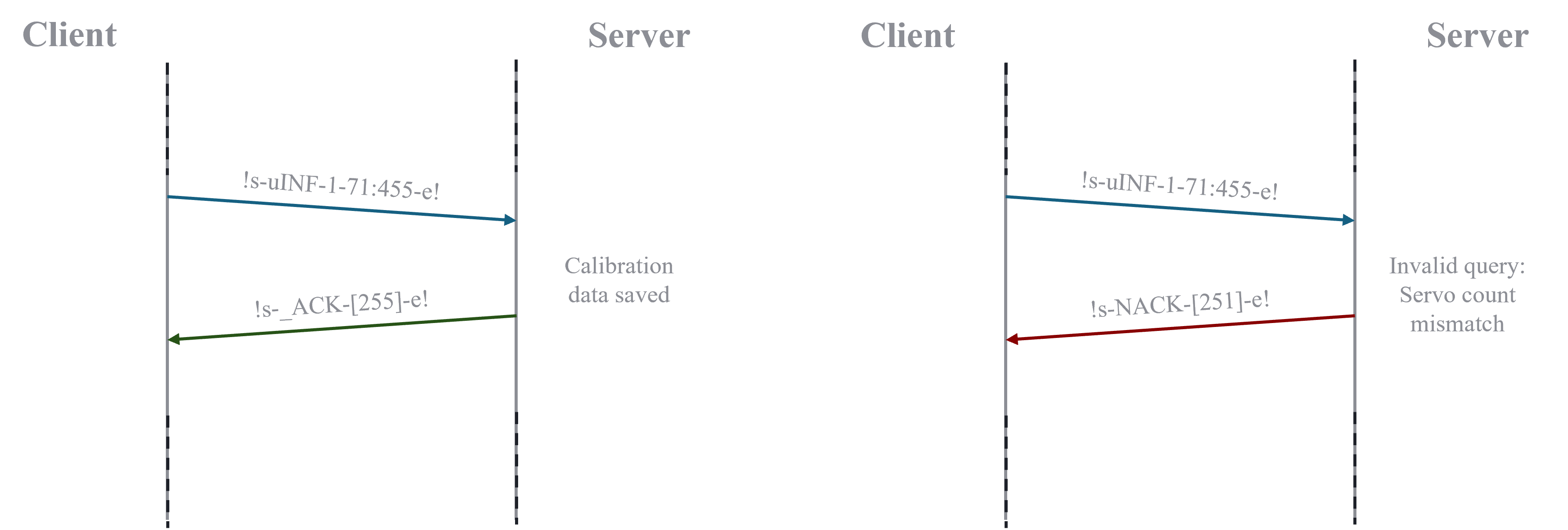

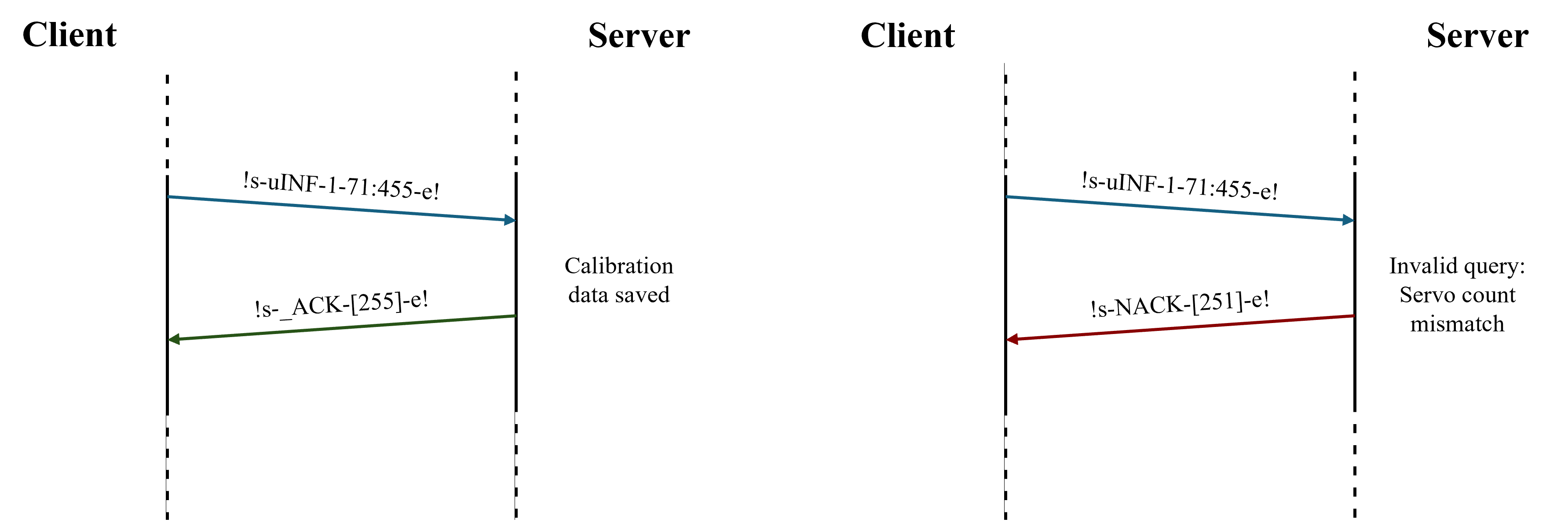

uINF Communication Overview
